Customization

All the customization discussed here is made on the collection settings page, which can be reached by clicking the "Edit" icon on the collection page. The "Edit" icon will only be avialable if you have owner permissions on the collection. Once you're on the "Edit" page you will need to click the down arrow at the bottom of the page to get to the configuration settings discussed here.

As a word of warning, a modest amount of programming is requried to customize the templates in TogetherMap. As you will soon see, some of the basics can be done without expert programming knowledge, and with the framework described here you can do some very powerful things in TM.

Shapefiles

Shapefiles are the lifeblood of GIS. Although TM isn't GIS, we can start with shapefiles because shapefiles are the most common way to 1) define a shape and 2) associate attributes with a shape. In our example, let's say we have a set of shapes, each of which has a name, description, and image url.

It's worth digressing here to point out that executing a couple of provided Python scripts is the easiest way to get shapefiles into and out of TM (and is required for large shapefiles). This is documented on the GitHub Page.

JSON

Instead of shapefiles, the vernacular of the web is JSON. JSON is essentially a Javascript object which is a key value dictionary that is human readable. For our example, you need only deal with one object at a time. TogetherMap takes care of reading the places from the database, synchronizing updates between users and many other things. Here is a sample place.

{
    shape: [-37.7792, 122.4191],
    name: "San Francisco City Hall",
    description: "This is the City Hall of SF",
    image_url: "http://imgur.com/ABCD"
}

GeoJSON

OK, that's easy enough, but what about the shape arribute? In fact, there is a whole specification for representing shapes in JSON called GeoJSON and this is the preferred way to represent shapes on the web rather than shapefiles. TM uses GeoJSON. With TM, you will never, ever have to know how shapes are stored. TM does this for you. You only need to know how to turn the attributes into text or into marker and shape themes.

JSON in TM

Let's imagine a coworker sent you a shapefile and you imported it into TM. You don't even really know what attributes are in the shapefile. Worry not. Once the data is in TM, that is now our problem. Under the first text area is a button with a "code" icon on it. Click it and it will give you a formatted sample object from this collection. One is printed below so that you won't be too worried when you see a place with it's full complexity.

So what do you need to know about this? Not as much as you'd think. The magic is all in the "properties" sub-dictionary, and you will see "properties" come up a lot in TM templates. "properties" is part of the GeoJSON spec and allows us to conform with existing conventions - this is where all of the attributes go. There are also some higher level attributes which TM adds, like createDate, updateDate, and creator which might be of some use, but for the most part, everything you need is under "properties".

Here you see name, image_url, and we'll use "caption" instead of "description." The "name" attribute on the place is what gets filled in the text box when you edit a place, and the "description" is filled in by the text editor. The other attributes you can edit when on the place edit page are "icon", "icon_size", and "color". Note that these correspond to the 5 html form elements that you see on every place edit page (this is because the most basic, default, mode for a TM collection is simply making and editing markers using the UI - if you create and use custom theming functions, these form elements will disappear because they aren't needed anymore).

{
  "_id": "7yqXaYKi3ZbaLCemM",
  "geometry": {
    "type": "Point",
    "coordinates": [
      -122.429913,
      37.766286
    ]
  },
  "type": "Feature",
  "bbox": {
    "type": "Point",
    "coordinates": [
      -122.429913,
      37.766286
    ]
  },
  "properties": {
    "description": "",
    "color": "#63d7b2",
    "name": "2175 Market",
    "caption": "Formerly a 76 gas station, 2175 Market will bring new housing units to transit-heavy Market Street. It will include 88 one- and two-bedroom units spread out over six stories. The development will also add 7,300 square feet of ground floor-retail along Market. ",
    "image_url": "http://cdn.cstatic.net/images/gridfs/51f008c6f92ea172190269bf/2175 Market Rendering - Corner.jpg",
    "url": "http://www.2175market.com",
    "address": "2175 Market Street, San Francisco, CA 94114, USA",
    "icon_size": "m",
    "icon": "building"
  },
  "creatorUID": "x2nRy8FNcpG32By4k",
  "creator": "Fletcher Foti",
  "createDate": "2015-06-20T06:19:29.957Z",
  "updateDate": "2015-06-20T06:19:29.957Z",
  "collectionId": "ecGPcWi4XRDvMHLSp"
}

Templates

Templates are how you turn JSON to HTML. Your web browser visualizes only HTML but JSON is the data which "backs" the HTML. For instance, we'll want to format and display the name as a header, the description as normal text, and the image_url as an image. You can see the actual collection we're trying to create here.

The first template that we can configure is the "Place Template (for Place Detail)". This is the template that is used on the place page. The actual template for the collection above is shown here, where we're substituting the name, url, image_url, and caption properties into a small html snippet.

The name is rendered as header, the url as a link, caption as normal text, and the image url as an image. It's pretty much that simple. Note that the double curly braces mean to substitute that attribute as text and the triple curly braces mean that attribute is already html and should be rendered as html.

Keep in mind that each template has a "test" button that allows you to test the template on a randomly chosen place to see what it looks like.

<h2>{{properties.name}}</h2>

{{#if properties.url}}
<a href="{{properties.url}}" target="_blank">View on Curbed</a>
<br><br>
{{/if}}

{{{properties.caption}}}

<br><br>

<img src="{{properties.image_url}}" style="width: 100%;">
<br><br>

That's really all you need to know to make a nicely formatted page, and a place page created by this template is located here. If you're an intermediate to advanced web programmer, you should know that these templates are rendered with handlebars.js which is a very powerful templating library, and everything it can do TM can do.

The user also controls the template for the "Place List" which is the list of places below the collection description, and the one for our sample collection looks like this:

<h4>{{properties.name}}</h4>

{{#if properties.url}}
<a href="{{properties.url}}" target="_blank">View on Curbed</a>
<br><br>
{{/if}}

{{{properties.caption}}}

<br><br>

<img src="{{properties.image_url}}" style="width: 300px;">
<br><br>

This is almost the same template as the place detail template except that the name is rendered with a small header (h4 instead of h2) and the image is not as wide to make scrolling easier.

The final template is for the label that pops up when you mouse over a place. The one for our sample collection looks like this:

<h4>{{properties.name}}</h4>
<img src="{{properties.image_url}}" style="width: 100px;">
<br>

Short and sweet. The popup doesn't have much room, so we display the name and a thumbnail version of the image. That's it, there's nothing more to it.

Autoform

Now let's assume your friend didn't send you a shapefile that had shapes and attributes and you need to create that information directly in TM. We already know how to make the shapes from the discussion on Adding Places. What's new in this section is how your users can easily enter attributes on TM, which we do using HTML forms.

TM does this using the Autoform package from the Meteor framework. Using this package you no longer have to painstakingly write the HTML by hand, you just configure the form with a JSON spec and TM will take care of rendering the form.

For instance, let's say you want to record the number of residential units (a number), the number of non-residential square feet (another number), and a drop down for "has bike parking" which can take the values of yes, no, and maybe. No problem. The code to create that form is shown below, which includes some extra formatting information for how to label each element in the form, and to make sure we don't allow negative numbers for the counts we want to record.

There's actually quite a bit more configuration that can be done with autoform, and we suggest you go directly to the autoform playground to build your form on their website. You can then copy the JSON back to the text area on TM and we will add a form on the edit page for every place to collect attributes about that place. These attributes can then be rendered in the HTML templates described above, or the themes described below, or even exported into a shapefile for further analysis outside of TM.

{
  residentialUnits: {
    label: "Number of residential units in development:",
    type: "Number",
    min: 0
  },
  nonResidentialSqft: {
    label: "Number of non-res square footage:",
    type: "Number",
    min: 0
  },
  hasBikeParking: {
    type: "String",
    label: "Has bike parking:",
    allowedValues: [
       "Yes", "No", "Don't know"
    ]
  }
}

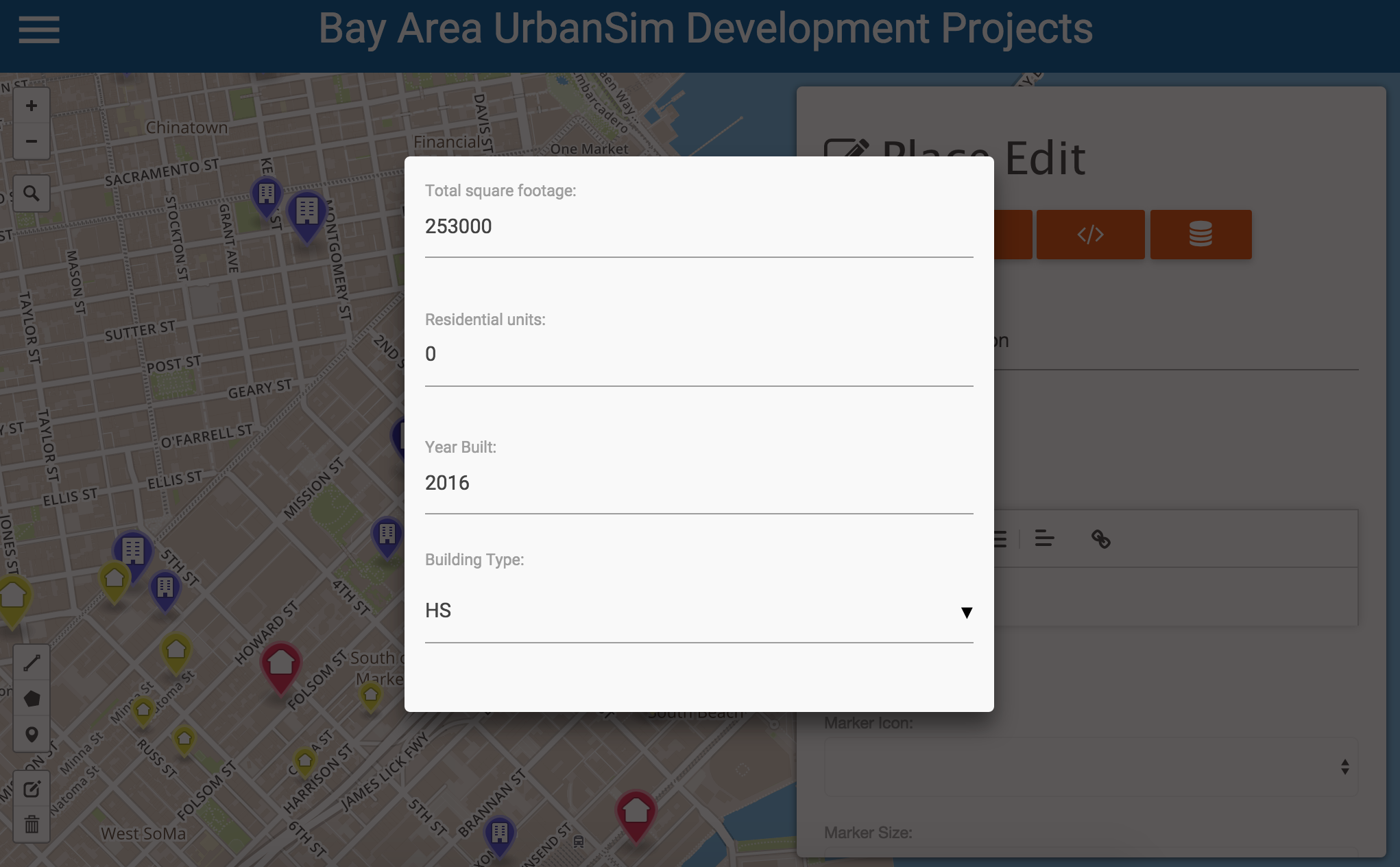

...which creates the form that looks like this:

...and can be seen in action on this collection.

Theming Functions

Now let's say your friend sent you a shapefile with some numbers already entered (probably the old way, using some desktop GIS tool), and these numbers represent new buildings in San Francisco. The buildings can be office buildings, residential buildings, and can vary in size from just a few townhomes to hundreds and hundreds of upscale condos.

In fact, with web maps we can change the size of markers, the colors, and the icons, and our goal is to make each building show up on a web map as a marker with a certain "theme" - in other words, we want to map certain attributes in the shapefile to certain traits of the markers.

We do that in TM with "theming functions" which are next in the collection edit page. There is a theming function for the icon (the picture that's inside the marker), the marker size, and the color for the marker (click the buttons above the text area to specify each function). Theming functions are actual Javascript functions so are the only thing that's actual code in TM. Still, Javascript is a pretty easy language to use so it shouldn't be too challenging to get through the basics.

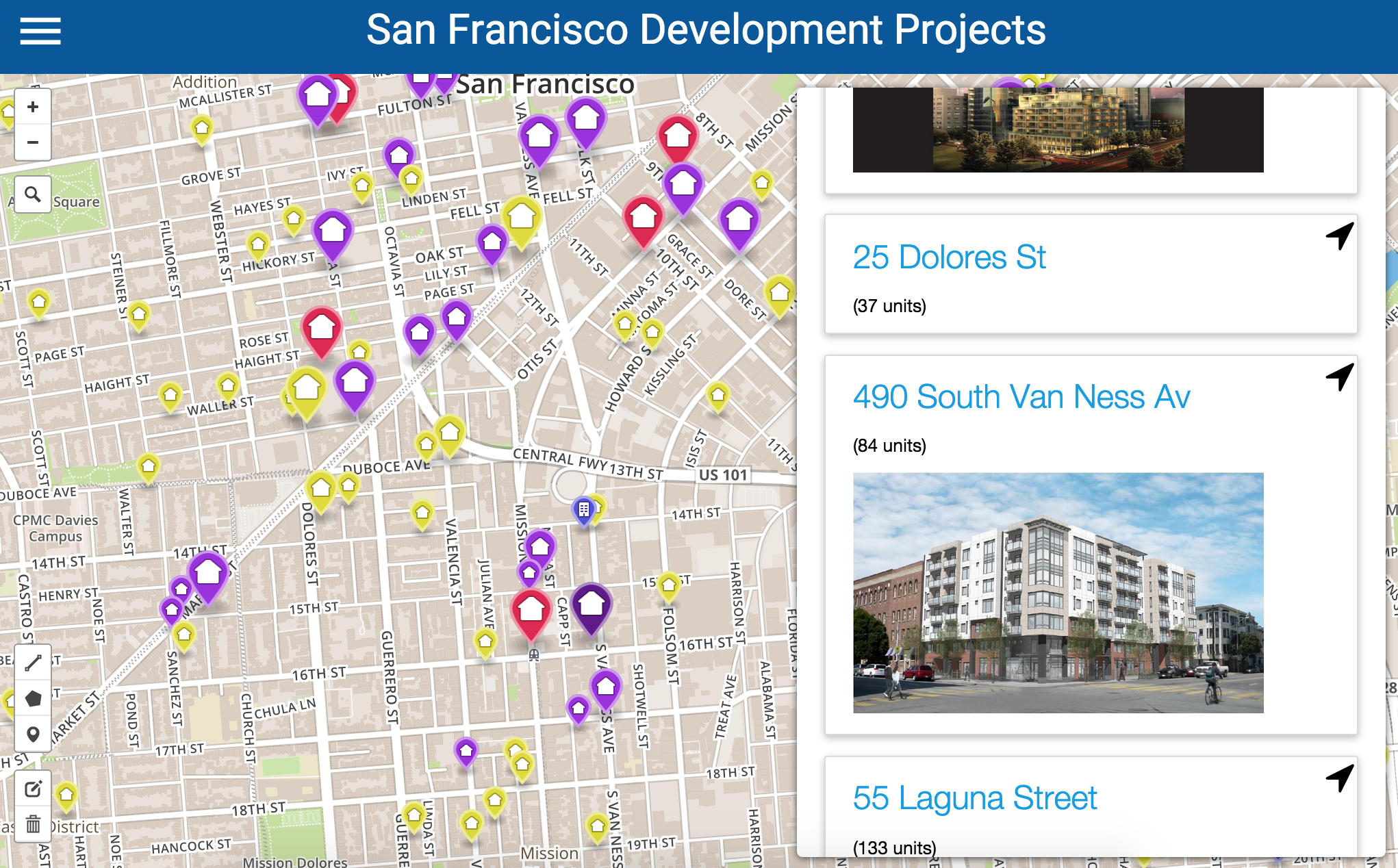

As an example, we're trying to build the theme shown in the screenshot below. This is available as a live demo here. This data is the actual development pipeline provided by the San Francisco Planning Department for late 2012 and early 2013.

First we specify the icon. TM uses the Maki icons which are described (and can be searched) here. All you have to do to specify the icon is to return the name of one of the icons that's shown at the link above. In this example, we want to to use the icon for "building" when there are residential units and "commercial" when there are not.

To do this we use the ternary (question mark) operator in Javascript. Note that in our functions the variable "p" is set to the "properties" dictionary we discussed above (the one that contains the attributes we always care about). What this code says is that if the attribute "Units" is greater than zero, return the string "building", otherwise return "commercial", and TM takes care of the rest for you.

Two things to remember since this is Javascript... First, it's very easy to create errors because this is relatively free-form coding, and second, you can open the console in the Chrome browser to see those errors and get a hint as to what you might be doing wrong. Since this is coding, you won't get it right the first time and will have to hone in on the desired behavior by trial and error. We promise we will make this easier in the future, but until then I feel confident you can do it!

Remember that you have to refresh the page in order to re-render the markers, so for every change you make in the theming functions you will need to refresh to see the results.

return p.Units > 0 ? "building" : "commercial";

Next comes icon size. This function must return one of the strings 's', 'm', and 'l' for small, medium, and large markers respectively. Yep, that's all there is to it. The function below returns 'l' when Units is greater than 80 or when the TotalSqftEstim attribute is greater than 150k. I think this code should be fairly easy to understand once you understand that "||" means "or" in Javascript.

if(p.Units > 80 || p.TotalSqftEstim > 150000) return 'l';
if(p.Units > 30 || p.TotalSqftEstim > 25000) return 'm';
return 's';

Next is the icon color function. This is very similar to the others but returns a color value. These colors can be hex numbers - you can search Google for a hex "color picker" or use your favorite from the web and just copy the value in here. It can also return simple colors like "blue", "red", "yellow", etc, but these colors are less nuanced obviously.

This function says: first check if there are no residential units and if so return a blue color. After that we know that the building is residential, but if it also contains commercial (the next line), we return purple. Then if it's a large building return red and otherwise return yellow. And that's how we choose the colors you see in the image above.

The one thing worth noting on this example is that you can use the p.Units notation if the attribute doesn't have weird characters in it, but you have to use p['WHATEVER'] notation if it does, which is why we have to do p['Total GSF (Commercial)']. Otherwise you should have seen all this before.

if(!p.Units) return '544FDB';
if(p['Total GSF (Commercial)'] > 500) return '9D28E0';
return p.Units > 120 ? 'E02850' : 'E0DD28';

That's pretty much it. With the above configuration, you can do most of what TM supports - you can record information from your users, you can use that data to theme the map, and you can use the same data to make html templates in the place detail view, the place list view, and the labels. Please feel free to ask questions - we'd love to help!

Enable up- and down-voting

This switch adds thumbs up and thumbs down widgets on every place so your users can upvote and downvote places. An upvote will increase the rating of a place by 1, and a downvote will decrease the rating by one. Places can then be sorted by rating.

Drop Markers

There are a few other on/off attributes in the collection edit view that will be discussed briefly here. "Drop markers" can be turned on for an effect that drops the markers from the sky in animated fashion whenever markers are added to the map. This is a question of taste though, so is user configuratble.

Turning off the Geoindex

The "geoindex" can be turned on and off. The geoindex is the functionality that limits the places that are loaded to only those shown in the map view. If you had hundreds of thousands of city markers worldwide, you would just want to load the few cities that are in the map view, so this is turned on by default. If you have less than a hundred places or so, it's usually fine to turn this off, which loads all the places in the collection immediately and can be handy for subsequent responsiveness and also so that all the places are in the list view all the time which is perhaps easier for users to understand on small collections. At any rate, it's up to the collection owner how they choose to set this.

Marker clustering

Marker clustering is a handy feature which uses the Leaflet clustering plugin to cluster markers together. This uses a single marker to represent many markers when zoomed out and then "splays" them out as the user zooms in. This is handy if you have lots and lots of markers on the map. It does not work well with the editing features in TogetherMap though, and should be considered as an experimental feature for TM at this time.

Disable place list

The place list on the collection page can be disabled either 1) to speed up the rendering of the DOM or 2) simply because a place list is not desired. This is not terribly common.

Enable advanced controls

This enables advanced controls on a collection, which allows the configuration of multiple themes on the collection, and multiple filters, and provides some additional widgets on the collection page. This assumes that both the collection owner and user are a little bit more advanced than the users assumed up to this point, and represents a push of functionality from a potentially consumer app to having some of the features common in professional GIS systems. These changes will be discussed next.

Advanced Controls

Collection Widgets (for the user)

Enabling advanced controls will add a few widgets for the user on the collection page. These widgets are described below:

  • Auto-load (on/off) - The collection is now assumed to be large, with potentially millions of shapes. In this case we want more fine-grained control over when places load. The user can now turn off auto-load so that when the map is panned or zoomed, no places are loaded.

  • The More Button - By default, 100 shapes are loaded nearest to the map center, and for every click of the more button, 100 more shapes are loaded.

  • Active Filter - If filters are configured on the collection edit page, the user can switch between filters, only displaying certain shapes on the map based on attributes of the shapes.

  • Active Theme - If muultiple themes are configure on the collection edit page, the user can switch between themes.

Filters

Once the switch is turned on to enable advanced controls, the owner of a collection can configure filters to be available to the user of the collection. These are added in the "Filter Name" and "Filter" text boxes (the user of the collection sees the name but not the filter). Click the "save filter" button to save the filter. Current filters can also be browsed (using the dropdown) and the displayed filter can be deleted using the "delete filter" button.

These filters are Meteor Mongo selectors to the find method. Here are a few examples:

  • An simple filter which limits to office buildings: {"properties.general_type": "Office"}.
  • A filter which limits to buildings where total_residential_units is bigger than 40: {"properties.total_residential_units": {"$gt": 40}}
  • A more general filter which uses a "where" clause which compares two different properties: {"$where":"this.properties.max_dua_au > this.properties.max_dua_np"}
  • A filter which uses the type attribute of the geojson geometry: {"geometry.type": "MultiPolygon"}

Multiple Themes

Once the switch is turned on to enable advanced controls, the owner of a collection can configure multiple themes which are available to the user of the collection. Each theme has a name, which is added in the "Theme Name" text box and then saved with the "New Theme" button. The active theme is then selected by picking the name in the dropdown, and the current theme can be deleted with the "Delete Theme" button. (Note this should sound very similar to how filters are configured above.)

At this point, you select a theme name which shows you the current icon, size, and color theming functions for that theme. Simply edit these functions for this theme using the same instructions as for a single theme. Each theme that is configured is then made available for the user of the collection to switch between.
